Thunderbolt 5 Module III - DM9803ML
| Version |

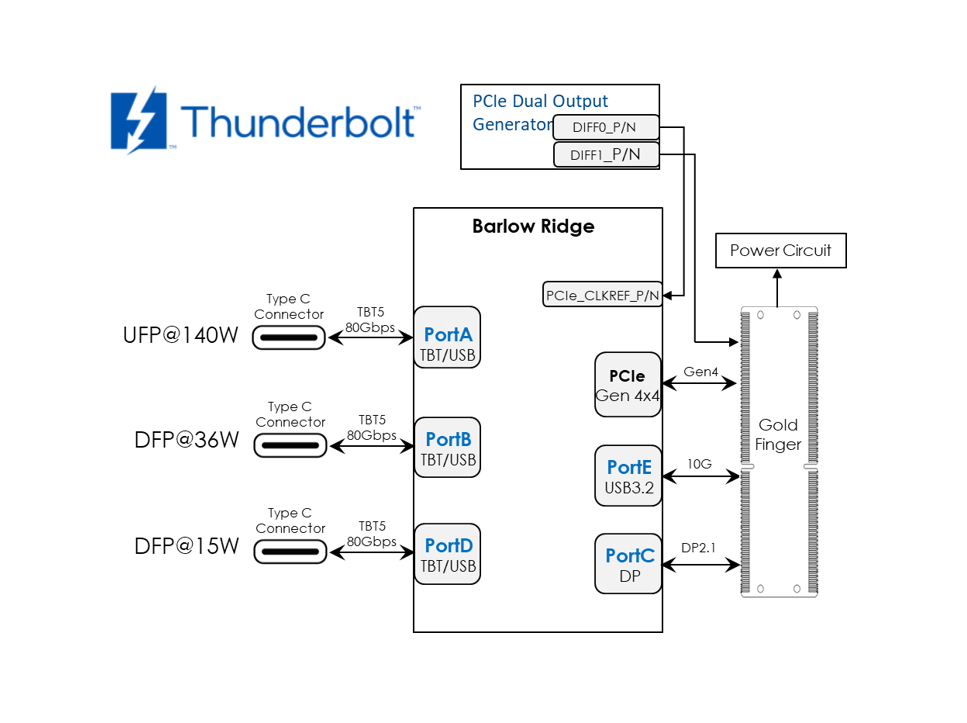

Thunderbolt 5 |
Barlow Ridge |
|
I/O |
3 * Thunderbolt 5 Port |
Port A - UFP up to 80Gbps @ 140W PD charging Port B - DFP up to 80Gbps @ 30W, support daisy chain Port C - DFP up to 80Gbps @ 15W, support daisy chain |
|
2 * M2 slot |
1 * DP 2.1 / 1* TBT5 + PCIe 4.0x4 + USB3.2 Gen2 for extension |
|
| Dimension |
Board Size |
42x70.5 mm |
| OS |
Windows |
Win11 Pro 24H2 & Home 24H2 |
|
MacOS |
Sequoia | |
| Power |
1 * DC IN |
20V/9A |
Any baseboard using this module:
1.Can skip EV test for TBT certification
2.Only Pre-test and FV are required
